HDI PCB Compliance Guide 2026: IPC-2226, IPC-6012 & IATF 16949 Certification Standards | SCM Group HK

As HDI PCB technology becomes the backbone of automotive ADAS systems, wearable devices, 5G infrastructure, and AI accelerator hardware in 2026, understanding the certification landscape is essential for any engineer or procurement manager qualifying a new supplier or validating a design for high-reliability production. The global HDI PCB market is projected to exceed USD 22 billion by end of 2026, driven by microvia density requirements in advanced packaging and the proliferation of multi-layer rigid-flex designs. The key international standards governing HDI PCB design and manufacturing include IPC-2226 (design standard for HDI printed wiring boards), IPC-6012 (qualification and performance specification for rigid printed boards), IPC-A-600 (acceptability of printed boards), and IATF 16949 (automotive quality management). For medical applications, ISO 13485 is additionally required, while aerospace applications demand AS9100 Rev D compliance. This guide provides a practical breakdown of each standard's relevance, what it covers, and what to verify when auditing a potential HDI PCB manufacturing partner.

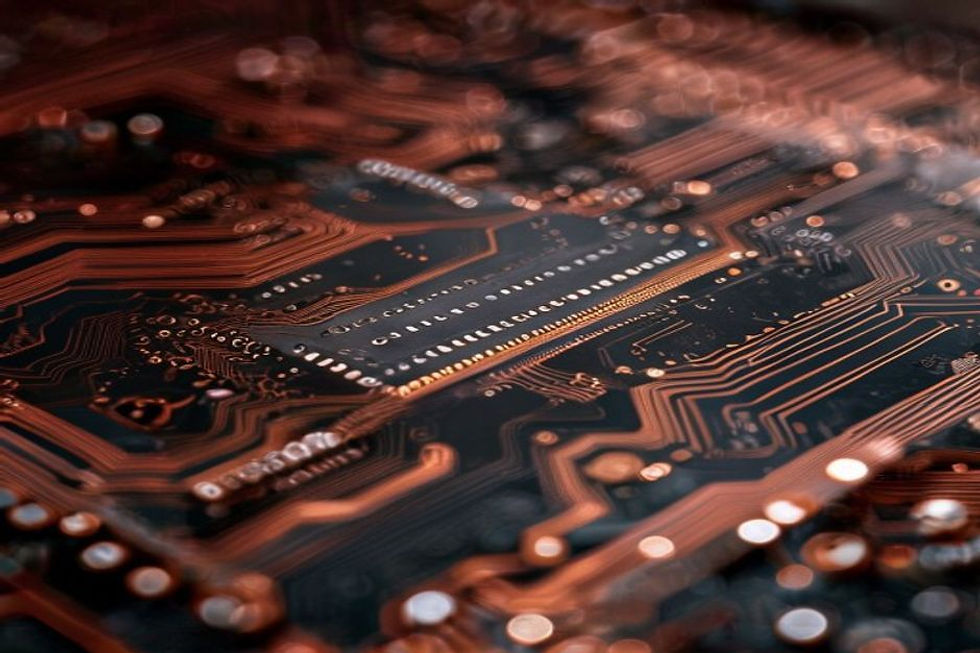

HDI PCB with stacked microvia technology — compliance with IPC-2226 and IPC-6012 is essential for high-reliability applications

IPC-2226 and IPC-6012: The Core HDI Design and Quality Standards

IPC-2226 defines the design requirements for HDI boards, specifying microvia structures (blind, buried, stacked, staggered), dielectric thickness control, trace and space dimensions (≤100 µm for HDI Class III), and via fill material requirements. Engineers designing to IPC-2226 must specify the HDI class — Class I covers through-hole with limited buried vias, while Class III covers full any-layer HDI with stacked microvias required for the densest smartphone and wearable designs. IPC-6012 addresses manufacturing qualification, defining Class 2 (general electronic products) and Class 3 (high-reliability) board acceptance criteria including conductor width tolerance (±20%), dielectric thickness variation (±10%), copper wrap plating in vias (minimum 20 µm for Class 3), and microsection inspection requirements. During supplier qualification, request the manufacturer's IPC-6012 Class 3 conformance evidence along with recent microsection photomicrographs from production panels — this is the fastest way to validate their process capability.

IATF 16949 and Automotive HDI PCB Qualification

For automotive applications — ADAS cameras, radar modules, EV battery management systems, and infotainment — IATF 16949 certification is mandatory for Tier 1 and Tier 2 supplier qualification. IATF 16949 builds on ISO 9001 with automotive-specific requirements including Advanced Product Quality Planning (APQP), Production Part Approval Process (PPAP), Failure Mode and Effects Analysis (FMEA), and measurement system analysis (MSA). When qualifying an HDI PCB supplier for automotive programs in 2026, buyers should request: IATF 16949 certificate with valid audit scope, PPAP Level 3 submission capability, AEC-Q200 reliability test data for component compatibility, and documented control plans for microvia formation, copper plating, and final inspection. X-ray inspection for stacked microvia interconnect verification should be confirmed as a standard in-process step — this is required by IPC-2226 for stacked via structures and is a frequent audit finding when missing.

Microsection inspection of HDI microvia structures — a key IPC-6012 Class 3 qualification step

Practical Supplier Audit Checklist for HDI PCB Buyers

When evaluating HDI PCB suppliers in 2026, go beyond certificate checklists. Key audit points include: laser drill capability and minimum achieved microvia diameter (target ≤75 µm for advanced HDI), sequential lamination cycle count and layer registration accuracy (±50 µm for 8+ layer HDI), copper plating uniformity data from process control charts, thermal reliability test results (IPC-TM-650 thermal shock cycling), and electrical test coverage (100% flying probe or AOI). Ask for Cpk data on critical dimensions — a capable supplier maintains Cpk ≥1.33 on trace width, dielectric thickness, and finished board thickness. SCM Group HK provides full technical intermediation for HDI PCB sourcing, from DFM review and supplier qualification to first-article inspection and ongoing quality monitoring.

Contact SCM Group HK for HDI PCB Sourcing

SCM Group HK provides end-to-end HDI PCB sourcing services — from prototype to mass production — with full compliance support for IPC, IATF 16949, and other industry standards. Our engineering team reviews your Gerber files and specifications to match you with qualified manufacturing partners in Shenzhen and Guangdong, managing quality audits, first-article testing, and export logistics. Whether you need 10-layer any-layer HDI for wearables or high-reliability automotive ADAS PCBs, we deliver verified solutions. Email: scmgroup@scmgroup.online | WhatsApp: +86-198-7525-3287
